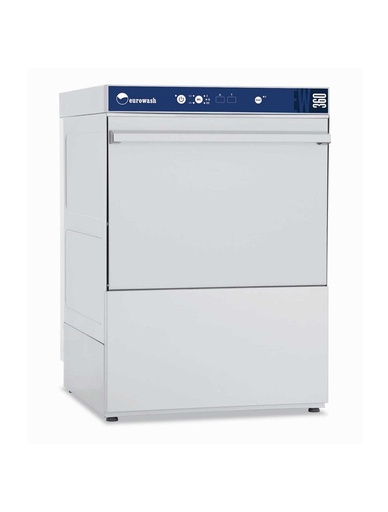

Undercounter dishwasher with 50×50 cm rack, full double-skin side panels with deep-drawn rack guide with rounded edges and full double-skin door.
The moulded tank is equipped with an integral filter made from composite material.
The wash chamber is free of internal pipes and sharp corners.
Rinse pump will guarantee constant pressure, temperature and flowrate during the rinse phase.
Standard equipment includes peristaltic detergent and rinse aid dispensers, which can be adjusted from the control panel. The door opening is 36,5 cm.
Image of optional plinth to raise loading and unloading height ergonomic
15 Amp Plug

Wash Cycles: 60 sec & 90 sec & 120 sec (1080 Plates/hr – 2160 Glasses/hr)

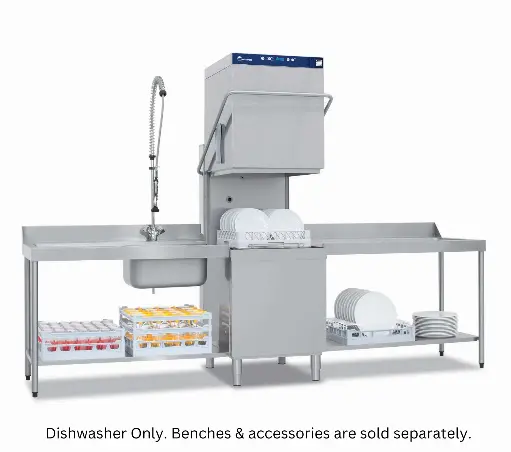

Big power with a small footprint, the Eurowash EW800 is a dish washing beast, perfect for the busiest kitchen. The massive 465mm hood opening devours huge amounts of dishes and glasses, so you power through the busiest of sessions with ease. The exclusive patented hood design is engineered to greatly reduce lifting effort without sacrificing quality.
Eurowash Pass-through Dishwasher
Suitable for High Volume and Cold Water Supply
3 Phase Electrical Supply
Benches in picture not included

Easy to use, reliable and complete, with three soft touch keys and a 4-character LED display, located on the lower body, which shows the wash and rinse temperatures. Carefully chosen graphic symbols provide a clear indication of the dishwasher status and wash cycle progress at a glance.

In addition to the operating parameters, such as the temperature of the tank and boiler or the number of cycles completed, the indications provided by the automatic diagnosis system are also displayed.

It is possible to adjust the dosing of detergent and rinse aid, while our specialised technicians can modify all the operating parameters of the machine.

Wash cycles (seconds): 60 – 120 – 150 – continuous.

BENCHES NOT INCLUDED

Standard equipment includes 1 x plate, 1 x universal rack and a cutlery basket.
ProClean Self-clean cycle is provided as standard.

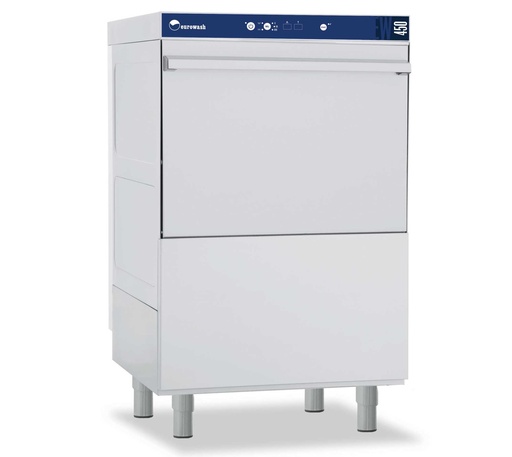

Undercounter glasswasher/dishwasher with 45×45 cm rack, single-skin side panels of the wash chamber.
Full double-skin construction of the door. The tank is equipped with a full-width integral surface filter made from composite material.
The wash chamber is free of internal pipes and sharp corners.
An effective compromise between a glass washer and a small plate washer can be the ideal the solution for a smaller restaurant with a limited number of covers.
Standard equipment includes peristaltic detergent and rinse aid dispensers, which can be adjusted from the control panel.
The door opening is 30 cm.

Features:

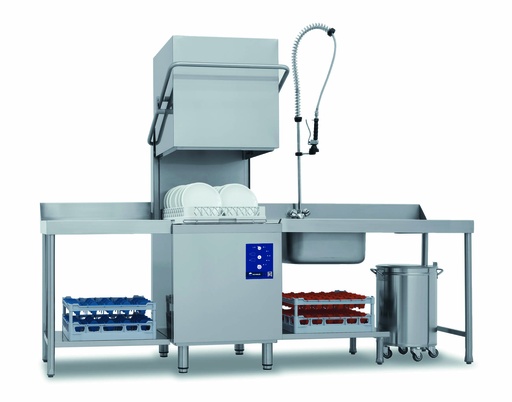

Hood dishwasher with 50×50 cm rack and Heat recovery system double-skin construction with single-skin hood. The moulded tank is equipped with an integral filter made from composite material. The hood opens smoothly, with little effort from the operator. The wash chamber is free of internal pipes and sharp corners and can accommodate Gastronorm and Euronorm trays.
Standard equipment includes peristaltic detergent and rinse aid dispensers, which can be adjusted from the control panel. The hood lifts smoothly and easily with no tight spots, thereby reducing operator fatigue. The hood opening of 46,5 cm is among the highest of products in this market segment.

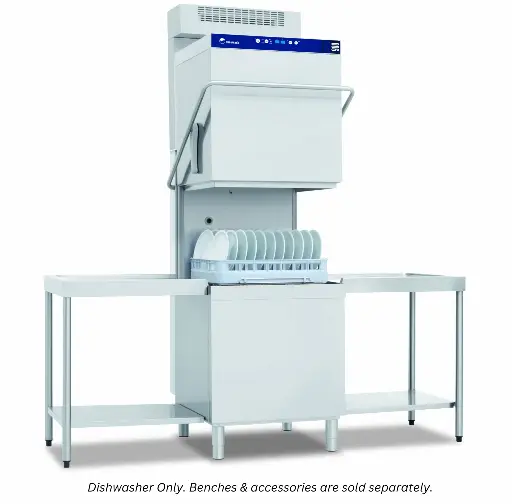

NRG Heat Recovery System:

To be combined with hood type dishwashers, extracts steam after rinsing and condenses this; the heat recovered increases inlet water temperature by 25 °C. Promotes a healthier working environment and also considerable energy saving through a 30% reduction in the heat gradient generated by the boiler rinse water. Use of this system also eliminates the need to install an external extraction hood. The entire process, which is fully automatic, lasts just 30 seconds.

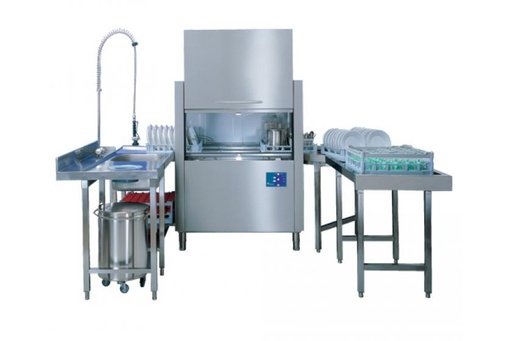

Eurowash EW3512 - Rack Conveyor Dishwasher 160 racks/hr
Overall Dimensions *open: 1150W x 770D x 1615 (2088*)H mm

Gross Weight: 240kg

Rack Dimensions: 500 x 500mm

Total Load (V/Hz/pH): 400V / 50Hz / 3N

Wash Temperature: 60 (63) °C

Optimal Water Supply Pressure: 1-4 bar

Rinse Water Consumption: 170min - 220max Lt/hr

Tank Volume: 70 Lt

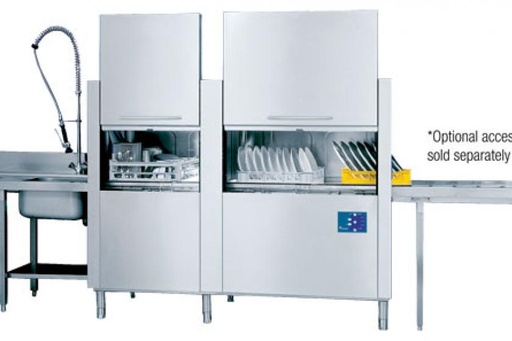

Eurowash EW3520 - Rack Conveyor Dishwasher 260 racks/hr
Overall Dimensions *open: 1.968W x 770D x 1.615 (2088*)H mm

Gross Weight: 300kg

Rack Dimensions: 500 x 500mm

Total Load (V/Hz/pH): 400V / 50Hz / 3N

Wash Temperature: 60 (63) °C

Optimal Water Supply Pressure: 2-4 bar

Rinse Water Consumption: 240min - 320max Lt/hr

Tank Volume: 70 Lt

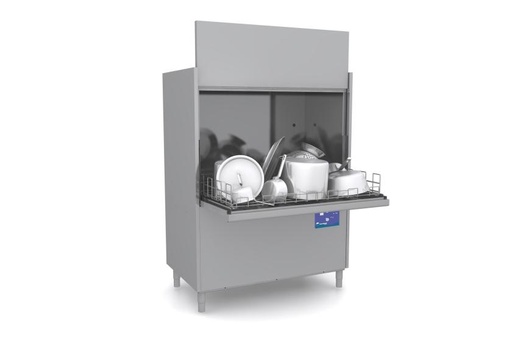

Eurowash EW3105 - Wide Body Utensil Washer with High Wash Chamber
Wash cycles (seconds): 120 – 240 – 360 – 720

Standard equipment includes 1 x Stainless Steel rack

Overall Dimensions *open: 1465W x 857 (*1400)D x 1959 (2274*)H mm

Gross Weight: 317kg

Rack Dimensions: 1320 x 700mm

Total Load (V/Hz/pH/Kw/AMP): 400V / 50Hz / 3N / 15.9W / 32A

Wash Temperature: 60-65°C

Optimal Water Supply Pressure: 1-6 bar

Rinse Water Consumption: 6 Ltrs/rack

Tank Volume: 131 Lt
